FH® Radiant Tubes – High-Performance Furnace Components
Product Overview
The FH® Radiant Tube is a high-quality, durable component designed for industrial furnaces and heat treatment systems. Engineered for maximum thermal efficiency, long service life, and reliable operation, FH® radiant tubes are ideal for natural gas, hydrogen, or other industrial gas-fired furnaces used in automotive, aerospace, steel, and metallurgy industries.
Manufactured from premium high-temperature alloys and cobalt-based superalloys, FH® radiant tubes offer excellent resistance to oxidation, carburization, and thermal fatigue, making them suitable for continuous high-temperature operations.
Key Features
- Exceptional High-Temperature Performance
FH® radiant tubes are engineered to withstand continuous furnace temperatures up to 1200°C, maintaining structural integrity under harsh conditions. - Superior Oxidation & Carburization Resistance
Constructed from premium heat-resistant alloys to resist scaling, oxidation, and carburization for extended operational life. - Efficient Heat Transfer
Optimized design ensures uniform heat distribution, improving furnace efficiency and reducing energy consumption. - Durable & Reliable Construction
Heavy-duty materials and precision manufacturing provide long-term durability, even under repeated thermal cycles. - Customizable Solutions
Available in various lengths, diameters, wall thicknesses, and materials to match different furnace types and industrial applications.
Applications
FH® Radiant Tubes are widely used in:
- Gas-fired industrial furnaces
- Annealing, carburizing, and tempering lines
- Continuous and batch furnace systems
- Automotive and aerospace component heat treatment
- Steel and alloy processing
- Precision engineering and metallurgy industries
Why Choose FH® Radiant Tubes?
- High Thermal Efficiency
Optimized tube design ensures efficient heat transfer and energy savings. - Long Service Life
Superior resistance to oxidation, carburization, and thermal fatigue reduces maintenance and replacement frequency. - Reliable Furnace Performance
Maintains consistent thermal performance for uniform heat treatment results. - Custom Engineering Support
FH® provides fully customizable tubes to match furnace dimensions, fuel type, and production requirements. - Trusted by Global Industrial Manufacturers
FH® radiant tubes are used by leading heat treatment and manufacturing facilities across Europe and North America.
Material Grade Table
| Heat-resistant Steel | |||||||||||||
| / | GB | DIN | ASTM | JIS | Chemical Composition (%) | Maximum Operation Temperature | |||||||
| C | Si | Mn | Cr | Ni | Nb/Cb | Mo | Other | ||||||
| 1 | ZG40Cr27Ni4 | 1.4823 | HD | SCH11 | 0.30 - 0.50 | ≤2.00 | ≤1.00 | 24.00 - 28.00 | 4.00 - 6.00 | - | ≤0.50 | - | 1050℃ |
| 2 | ZG40Cr22Ni10 | 1.4826 | HF | SCH12 | 0.30 - 0.50 | 1.00 - 2.50 | ≤2.00 | 19.00 - 23.00 | 8.00 - 12.00 | - | ≤0.50 | - | 950℃ |
| 3 | ZG30Cr28Ni10 | - | HE | SCH17 | 0.20 - 0.50 | ≤2.00 | ≤2.00 | 26.00 - 30.00 | 8.00 - 11.00 | - | - | - | 1050℃ |
| 4 | ZG40Cr25Ni12 | 1.4837 | HH | SCH13 | 0.30 - 0.50 | 1.00 - 2.50 | ≤2.00 | 24.00 - 27.00 | 11.00 - 14.00 | - | ≤0.50 | - | 1050℃ |
| 5 | ZG30Cr28Ni16 | - | HI | SCH18 | 0.20 - 0.50 | ≤2.00 | ≤2.00 | 26.00 - 30.00 | 14.00 - 18.00 | - | - | - | 1100℃ |
| 6 | ZG40Cr25Ni20Si2 | 1.4848 | HK | SCH21 | 0.30 - 0.50 | ≤1.75 | ≤1.50 | 23.00 - 27.00 | 19.00 - 22.00 | - | ≤0.50 | - | 1100℃ |
| 7 | ZG30Cr20Ni25 | - | HN | SCH19 | 0.20 - 0.50 | ≤2.00 | ≤2.00 | 19.00 - 23.00 | 23.00 - 27.00 | - | - | - | 1100℃ |
| 8 | ZG40Cr19Ni39 | 1.4865 | HU | SCH20 | 0.35 - 0.75 | ≤2.50 | ≤2.00 | 17.00 - 21.00 | 37.00 - 41.00 | - | - | - | 1020℃ |
| 9 | ZG40Cr15Ni35 | 1.4806 | HT | SCH15 | 0.35 - 0.70 | ≤2.00 | ≤2.00 | 15.00 - 19.00 | 33.00 - 37.00 | - | ≤0.50 | - | 1000℃ |
| 10 | ZG40Cr25Ni35Nb | 1.4852 | HPCb | SCH24Nb | 0.30 - 0.50 | ≤2.00 | ≤2.00 | 24.00 - 28.00 | 33.00 - 37.00 | 0.80 - 1.80 | ≤0.50 | - | 1100℃ |
| 11 | ZG40Cr19Ni39Nb | 1.4849 | - | - | 0.30 - 0.50 | 1.00 - 2.50 | ≤2.00 | 18.00 - 21.00 | 36.00 - 39.00 | 1.20- 1.80 | ≤0.50 | - | 1100℃ |
| 12 | ZG40Cr24Ni24Nb | 1.4855 | - | - | 0.30 - 0.50 | 1.00 - 2.50 | ≤2.00 | 23.00 - 25.00 | 23.00 - 25.00 | 0.80 - 1.80 | ≤0.50 | - | 1050℃ |
| 13 | ZG40Cr25Ni35 | 1.4857 | HP | SCH24 | 0.35 - 0.50 | 1.00 - 2.50 | ≤2.00 | 24.00 - 28.00 | 33.00 - 37.00 | - | ≤0.50 | - | 1100℃ |
| 14 | ZG1Cr20Ni32Nb | 1.4859 | - | - | 0.06 - 0.15 | 0.50 - 1.50 | ≤2.00 | 19.00 - 21.00 | 31.00 - 33.00 | 0.50 - 1.50 | ≤0.50 | - | 1050℃ |
| 15 | ZG45Cr12Ni60 | - | HW | - | 0.35 - 0.75 | ≤2.00 | ≤2.00 | 10.00 - 14.00 | 58.00 - 62.00 | - | - | - | 1100℃ |
| 16 | ZG45Cr18Ni66 | - | HX | - | 0.35 - 0.75 | ≤2.00 | ≤2.00 | 15.00 - 19.00 | 64.00 - 68.00 | - | - | - | 1100℃ |
| 17 | ZG1Cr28Co50 | 2.4778 | - | - | 0.05 - 0.25 | 0.50 - 1.00 | ≤1.50 | 27.00 - 30.00 | ≤1.00 | ≤0.50 | ≤0.50 | Co:48.0 - 52.0 | 1200℃ |
| 18 | ZG30Cr28Co50Nb | 2.4779 | - | - | 0.25 - 0.35 | 0.50 - 1.50 | 0.50 - 1.50 | 27.00 - 29.00 | - | 1.50 - 2.50 | ≤0.50 | Co:48.0 - 52.0 | 1200℃ |
| 19 | ZG40Cr28Ni48W5 | 2.4879 | - | SCH42 | 0.35 - 0.55 | 1.00 - 2.00 | ≤1.50 | 27.00 - 30.00 | 47.00 - 50.00 | - | ≤0.50 | W:4.0 - 5.5 | 1200℃ |

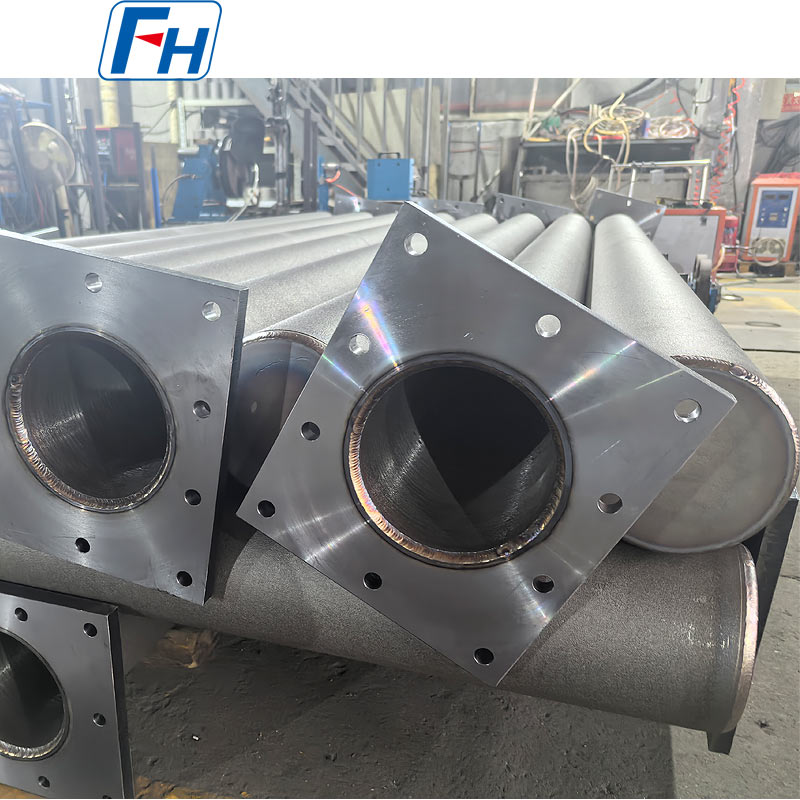

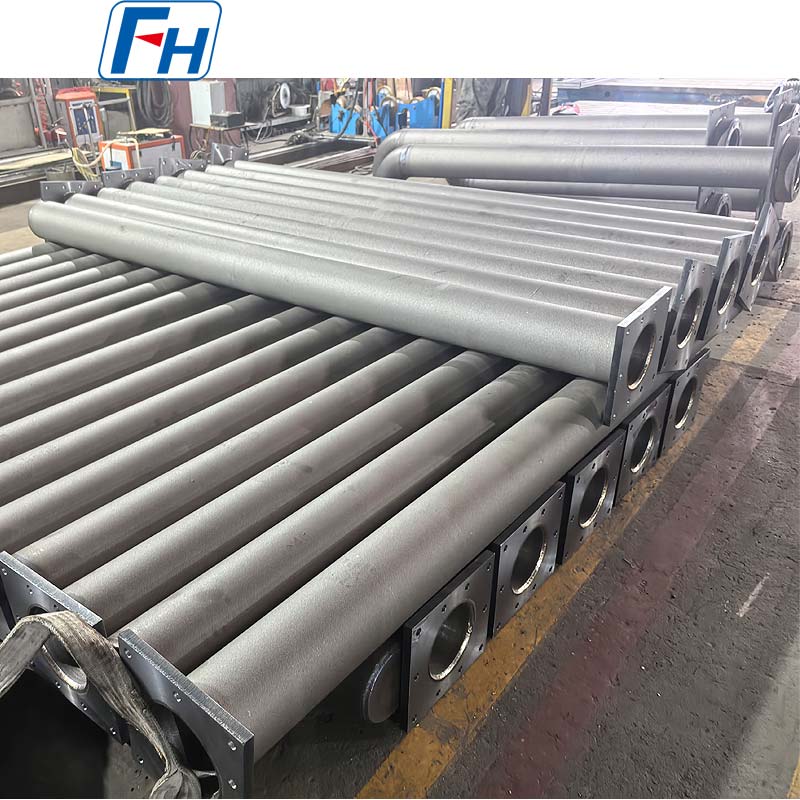

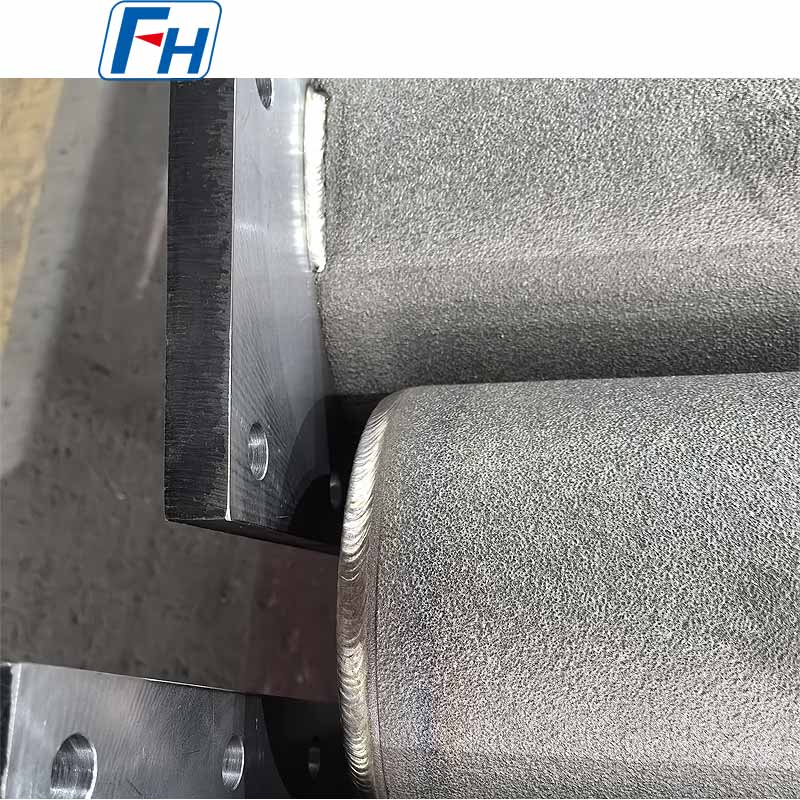

Genuine Photos of FH® Radiant Tubes
FAQ
Q: What furnace types are FH® radiant tubes suitable for?
A: FH® radiant tubes are widely used in gas-fired, continuous, batch, annealing, and heat treatment furnaces.
Q: What materials are available for FH® radiant tubes?
A: We offer heat-resistant alloy steel and HR25 cobalt-based superalloy options for different furnace environments and temperatures.
Q: What is the maximum operating temperature?
A: FH® radiant tubes can typically operate continuously at temperatures up to 1200°C.
Q: Can FH® manufacture custom radiant tubes?
A: Yes. We provide customized diameters, lengths, wall thicknesses, and tube designs based on your furnace specifications.
Q: What are the advantages of FH® radiant tubes?
A: FH® radiant tubes offer excellent heat transfer efficiency, oxidation resistance, long service life, and reliable high-temperature performance.
